Reducing tee, stainless steel 1.4301/304
  • Order number: 320RTR100-063
  • Other nominal diameters and dimensions on request
  • Delivery time: 1-3 days
€390.00
Pressure range 1 · 10-8 hPa to 500 hPa over pressure (elastomer seal); 1 · 10-9 hPa to 500 hPa over pressure (metal seal)
Material Stainless Steel 304/1.4301
Nominal diameter DN 100 ISO-K
Nominal diameter reduced DN 63 ISO-K
Temperature range -196 – 300 °C

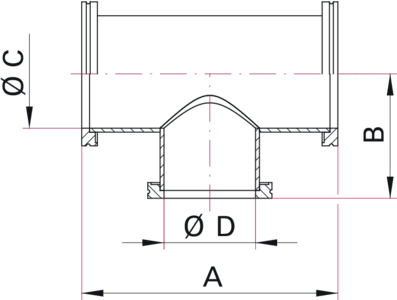

Dimension Image
mm
A 216
B 107
C 102
D 70
