Reducing cross piece, stainless steel 1.4301/304
- Other nominal diameters and dimensions on request
-
320RKR160-100
- Other nominal diameters and dimensions on request
- Delivery time: 1-3 days
Global-No. 2000042594
| Connection flange | DN 160 ISO-K / DN 100 ISO-K |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure Metal seal: 1 · 10-9 hPa – 500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Nominal diameter reduced | DN 100 ISO-K |
| Temperature range | -196 – 300 °C |

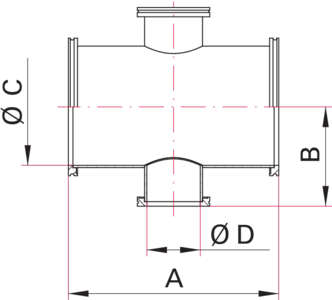

| mm | |
|---|---|
| A | 276 |
| B | 131 |
| C | 153 |
| D | 102 |
