Instrument cross, stainless steel 1.4301/304
- Three ports: DN 16 KF | DN 25 KF | DN 40 KF
-
320RKM100
- Three ports: DN 16 KF | DN 25 KF | DN 40 KF
- Delivery time: 1-3 days
Global-No. 2000042569
| Connection flange | DN 100 ISO-K |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure Metal seal: 1 · 10-9 hPa – 500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Temperature range | -196 – 300 °C |

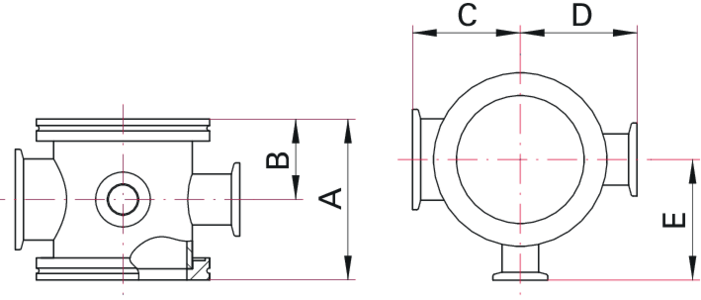

| mm | |
|---|---|
| A | 100 |
| B | 50 |
| C | 77 |
| D | 80 |
| E | 82 |
