Instrument cross, stainless steel 1.4301/304
    320RKM160
    Global-No. 2000042570
  • Three ports: DN 16 KF | DN 25 KF | DN 40 KF
  • Delivery time: 1-3 days
€455.00
Connection flange DN 160 ISO-K
Pressure range Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure
Metal seal: 1 · 10-9 hPa – 500 hPa over pressure
Materials in contact with media Stainless steel 1.4301 (AISI 304)
Temperature range -196 – 300 °C

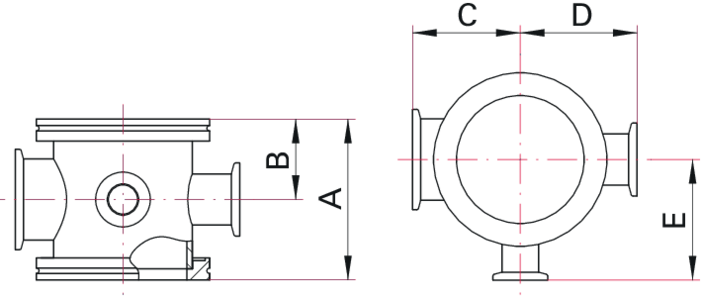

Dimension Image
mm
A 100
B 50
C 107
D 105
E 107
Name Category Language Filesize
Messkreuz
Datasheet_320RKM160_de.pdf 		Datasheet German 334 kB
Instrument cross
Datasheet_320RKM160_en.pdf 		Datasheet English 319 kB
