Corrugated hose, flexible, annealed; stainless steel: flange 1.4301/304; bellows 316L
  • Order number: 320SWG063-0500
  • Flange connection length: 30 mm
  • Stress relieved; low reset force when bent
  • Custom lengths on request
  • Delivery time: On request
€305.00
Bending radius, one-time movement 90 mm
Pressure min. 1 · 10-8 hPa
Material Stainless Steel: Flange 304/1.4301; Bellows 316L
Nominal diameter DN 63 ISO-K
Temperature range -196 – 300 °C
Overpressure max. 500 hPa

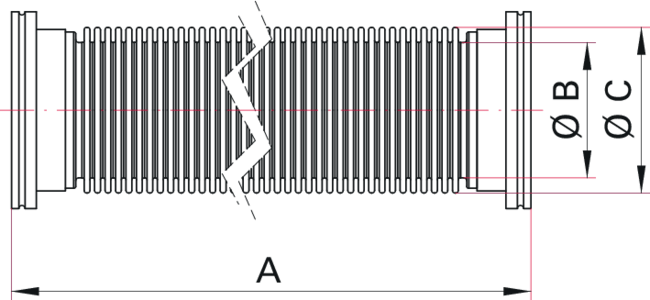

Dimension Image
mm
A 500
B 65
C 80
