Bellows, stainless steel: flange 304; bellows 316L
- Flange connection length: 30 mm
- Custom lengths on request
-
320SFK063-150
- Flange connection length: 30 mm
- Custom lengths on request
- Delivery time: 1-3 days
Global-No. 2000042746
| Connection flange | DN 63 ISO-K |
|---|---|
| Axial stroke | ± 20 mm |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1E-8 hPa – 5E2 hPa over pressure (elastomer seal); 1E-9 hPa – 5E2 hPa over pressure (metal seal) |
| Material | Stainless steel (flange: 304; bellows: DN 63 to DN 100 and DN 320: 316L; DN 160 to DN 250: 1.4571) |
| Specific Dimensions or Numbers | Length 150 mm |
| Service life | 10000 cycles |
| Temperature range | -196 – 300 °C |

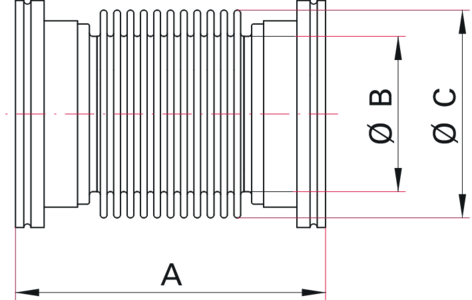

| mm | |
|---|---|
| A | 150 |
| B | 65 |
| C | 87 |
