Weld-on flange, stainless steel 304L
- Flange for welding to a flat panel or a round chamber/tube
- Other flange materials on request
-
420FES040
- Flange for welding to a flat panel or a round chamber/tube
- Other flange materials on request
- Delivery time: On request
Global-No. 2000041796
| Connection flange | DN 40 CF |
|---|---|
| Number of screws | 6 pcs. |
| Pressure range | 1E-12 hPa – to ambient pressure |
| Thread | M 6 |
| Thread depth | 10 mm |
| Materials in contact with media | Stainless steel (AISI 304L) |
| Temperature range | -196 – 300 °C |

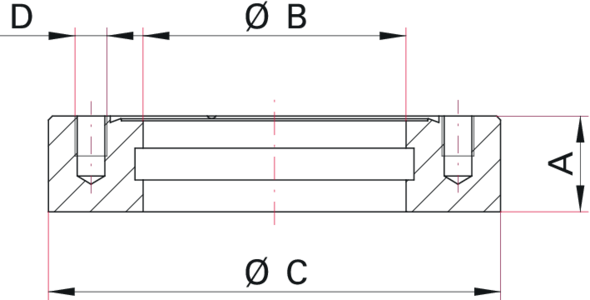

| mm | |
|---|---|
| A | 24 |
| B | 37 |
| C | 69.9 |
