Flange, rotatable, stainless steel
- Pipe surface: glass-bead blasted (polished version on request)
- Other flange and tube materials on request
- Other pipe dimensions on request
-
420FRD100-108-135
- Pipe surface: glass-bead blasted (polished version on request)
- Other flange and tube materials on request
- Other pipe dimensions on request
- Delivery time: 1-3 days
Global-No. 2000040959
| Connection flange | DN 100 CF |
|---|---|
| Tightness | 1 · 10-11 Pa m³/s |
| Rotatable flange per axis | 1 |
| Pressure range | 1E-12 hPa – to ambient pressure |
| Material | Flange: stainless steel 304L; tube: stainless steel 304L or better |
| Tube dimension | 108 mm × 2 mm |
| Specific Dimensions or Numbers | Pipe Ø 108 x 2 mm, length 135 mm |
| Temperature range | -196 – 300 °C |

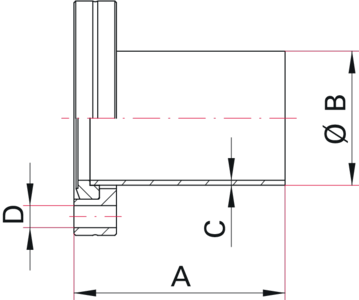

| mm | |
|---|---|
| A | 135 |
| B | 108 |
| C | 2 |
| D | 8.4 |
