Quick-Access Door, without Sight Glass, Stainless Steel
- Screw holes: Through-holes with counter-bore for cylinder head
- Can be installed using hexagon socket screws
-
420KTU250
- Screw holes: Through-holes with counter-bore for cylinder head
- Can be installed using hexagon socket screws
- Delivery time: 1-3 days
Global-No. 2000041020
| Connection flange | DN 250 CF |
|---|---|
| Number of screws | 32 pcs. |
| Seal | FKM |
| Pressure range | 1E-8 hPa – to ambient pressure |
| Materials in contact with media | Stainless steel |
| O-ring material | FKM |
| Temperature range | -15 – 150 °C |

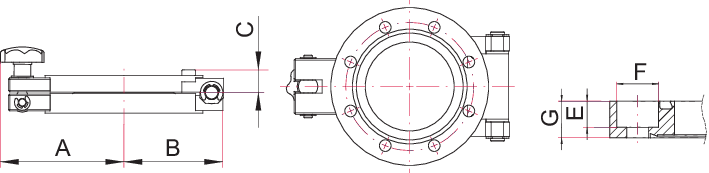

| mm | |
|---|---|
| A | 186 |
| B | 171 |
| C | 20 |
| E | 10 |
| F | 16 |
| G | 20 |
