Reducing cross piece, stainless steel 304L
- One rotatable flange per axis
- Tube surface: glass bead blasted (polished version on request)
- Other flange and tube materials on request
- Order number: 420RKR100-063
- One rotatable flange per axis
- Tube surface: glass bead blasted (polished version on request)
- Other flange and tube materials on request
- Delivery time: On request
| Tightness | 1 · 10-11 Pa m³/s |
|---|---|
| Pressure range | 1 · 10-12 hPa to ambient pressure |
| Material | Flange: stainless steel 304L; tube: stainless steel 304L or better |
| Nominal diameter | DN 100 CF |
| Nominal diameter reduced | DN 63 CF |
| Temperature range | -196 – 300 °C |

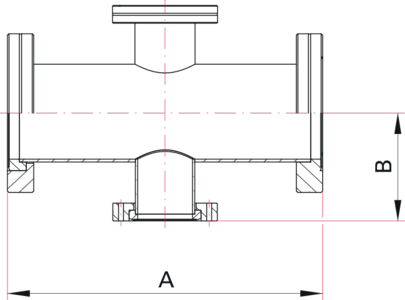

| mm | |
|---|---|
| A | 270 |
| B | 95 |
