Cross piece, 5-way, stainless steel 304L
- One rotatable flange per axis
- Pipe surface: glass-bead blasted (polished version on request)
- Other flange and tube materials on request
-
420RKF063
- One rotatable flange per axis
- Pipe surface: glass-bead blasted (polished version on request)
- Other flange and tube materials on request
- Delivery time: 1-3 days
Global-No. 2000041143
| Connection flange | DN 63 CF |
|---|---|
| Tightness | 1 · 10-11 Pa m³/s |
| Rotatable flange per axis | 1 |
| Pressure range | 1E-12 hPa – to ambient pressure |
| Material | Flange: stainless steel 304L; tube: stainless steel 304L or better |
| Temperature range | -196 – 300 °C |

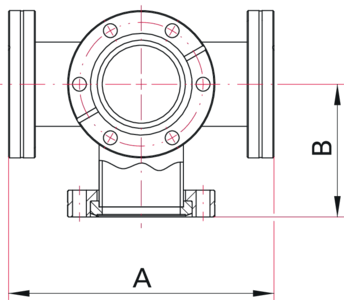

| mm | |
|---|---|
| A | 210 |
| B | 105 |
