Corrugated hose, flexible, stainless steel: flange 304L, bellows 316L, length 1000 mm
    420SWN063-1000
    Global-No. 2000041326
  • One flange rotatable
  • Custom lengths on request
  • Delivery time: 1-3 days
€650.00
Connection flange DN 63 CF
Bending radius, one-time movement 90 mm
Bending radius, frequent movement 330 mm
Rotatable flange per axis 1
Pressure range 1E-9 hPa – to ambient pressure
Material Stainless steel: Flange 304L, Bellows 316L
Specific Dimensions or Numbers Length 1000 mm
Temperature range -196 – 300 °C

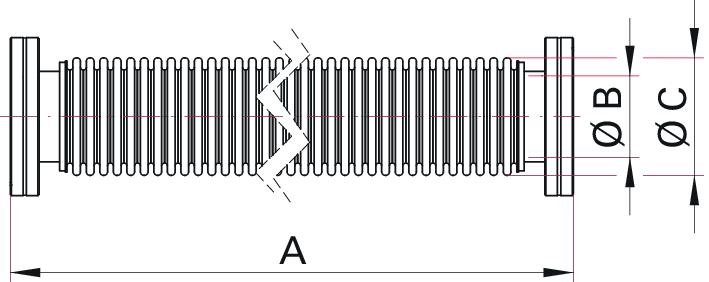

Dimension Image
mm
A 1000
B 65
C 81
