Bellows, stainless steel: flange 304L, bellows 1.4571
- One flange rotatable
- Custom lengths on request
-
420SFK160-270
- One flange rotatable
- Custom lengths on request
- Delivery time: 1-3 days
Global-No. 2000041314
| Connection flange | DN 160 CF |
|---|---|
| Axial stroke | ± 15 mm |
| Tightness | 1 · 10-11 Pa m³/s |
| Rotatable flange per axis | 1 |
| Pressure range | 1E-10 hPa – to ambient pressure |
| Material | Stainless steel: Flange 304L, Bellows 316L |
| Specific Dimensions or Numbers | Length 270 mm |
| Service life | 10000 cycles |
| Temperature range | -196 – 300 °C |

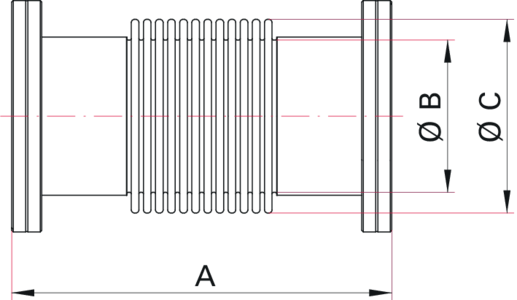

| mm | |
|---|---|
| A | 270 |
| B | 155 |
| C | 184 |
