Viewport, aluminum / borosilicate glass
  • Order number: 110GSG040
  • Aluminum frame with integrated FKM O-ring, installation without additional seal
  • Circumferential rim for outer centering on the ISO-KF counter flange
  • Not suitable for installation on base plate
  • Delivery time: 1-3 days
€97.00
Heat up and cool down rate ≤ 5 K/min
Pressure range 1E-8 hPa – 5E2 hPa over pressure
Flange, material Aluminium
Nominal diameter DN 40 ISO-KF
Sight glass Borosilicate glass
Temperature range -15 – 150 °C

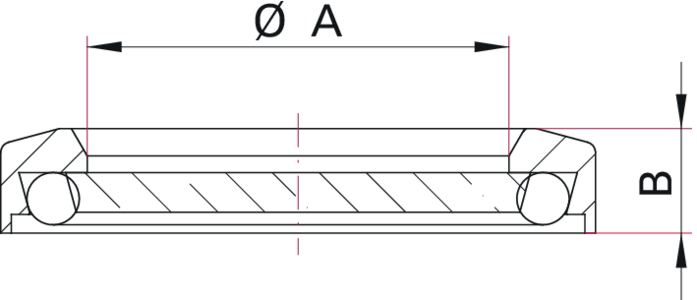

Dimension Image
mm
A 41
B 10
