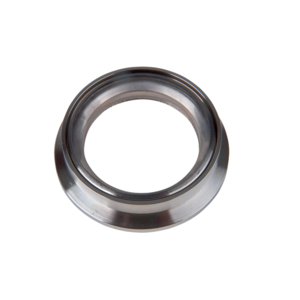

Viewport, stainless steel / sapphire glass
  • Order number: 120GSG016-saphir
  • Stainless steel frame; glass soldered
  • Transmission in IR spectrum to 4500 nm
  • Delivery time: 1-3 days
€450.00
Heat up and cool down rate max. 20 K/min
Pressure range 1 · 10-8 hPa to 500 hPa over pressure
Flange, material Stainless steel
Nominal diameter DN 16 ISO-KF
Sight glass Sapphire glass
Temperature range -100 – 350 °C

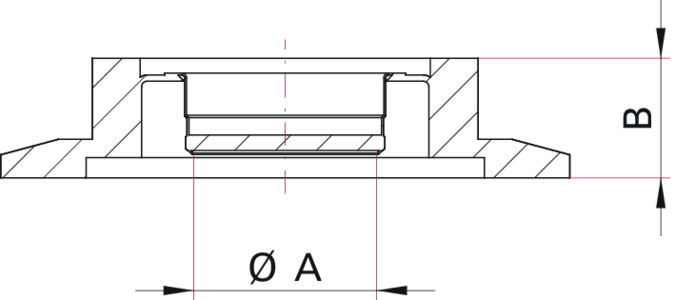

Dimension Image
mm
A 15
B 12.7
