Viewport, stainless steel / borosilicate
- Frame with integrated FKM O-ring, installation without additional seal
- Circumferential rim for outer centering on the ISO-K counter flange
- Not suitable for mounting on base plate or with ISO-F flange
- Caution! Risk of injury by glass splinters. Do not use viewports which show apparent damage
-
322GSG100
- Frame with integrated FKM O-ring, installation without additional seal
- Circumferential rim for outer centering on the ISO-K counter flange
- Not suitable for mounting on base plate or with ISO-F flange
- Caution! Risk of injury by glass splinters. Do not use viewports which show apparent damage
- Delivery time: 1-3 days
Global-No. 2000041914
| Connection flange | DN 100 ISO-K |
|---|---|
| Heat up and cool down rate | ≤ 5 K/min |
| Pressure range | 1E-8 hPa – 5E2 hPa over pressure |
| Material | Stainless steel / Borosilicate |
| Temperature range | -15 – 150 °C |

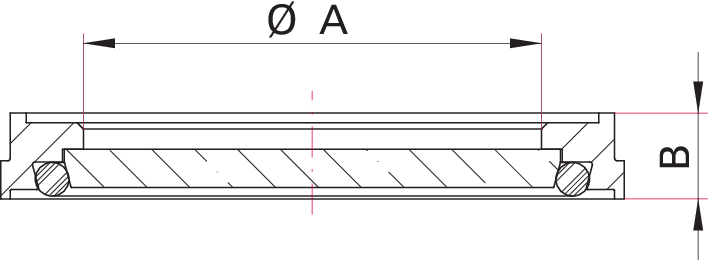

| mm | |
|---|---|
| A | 104 |
| B | 15 |
