Manometer, suitable for UHV
- Mechanical bourdon manometer
- For coarse vacuum display, suitable for UHV and bake-out
- Corrosion resistant
- Options: Other connectors, e. g. VCR, Swagelok®, or customer-specific
-
420C-MAN016-Int.A
- Mechanical bourdon manometer
- For coarse vacuum display, suitable for UHV and bake-out
- Corrosion resistant
- Options: Other connectors, e. g. VCR, Swagelok®, or customer-specific
- Delivery time: 1-3 days
Global-No. 2000198513
| Connection flange | DN 16 CF |
|---|---|
| Tightness | < 1 · 10-10 Pa m³/s |
| Precision class | 1.6 |
| Materials in contact with media | Stainless steel |
| Measuring range | 0 - 1500 hPa |
| Measuring method | Bourdon |
| Scale | -1 to +0.6 bar |
| Temperature: Medium | ≤ 150 °C |
| Ambient temperature | -20 – 60 °C |

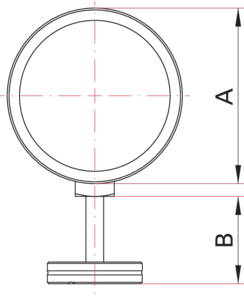

| mm | |
|---|---|
| A | 68 |
| B | 21.2 |
