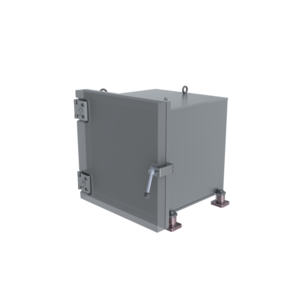

High Vacuum Chamber, Cubical, KBH
  • Order number: 820KBH0500-G
  • Cubical chamber body
  • Hinged door and FKM seal
  • Surface: inside and outside glass bead blasted
  • Chamber with foot-plates and ring bolts
  • Feet available separately (accessories)
  • Chamber ports available (accessories)
  • Delivery time: On request
€7,500.00
Tightness< 1 · 10-9 Pa m³/s
Pressure range1 · 10-5 hPa to ambient pressure
MaterialChamber body made from stainless steel 304 (1.4301); acrylic glass door (PMMA)
Nominal diameterDN 500
Temperature range0 – 40 °C

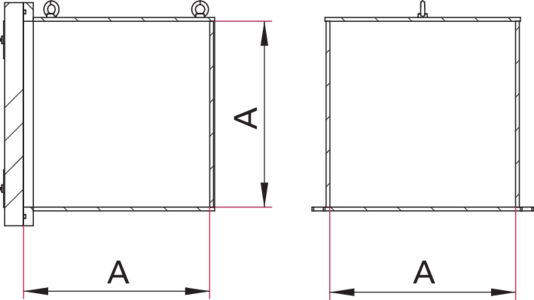

mm
A500
