High vacuum chamber, vertical, KVH
  • Order number: 820KVH0320-250
  • Cylindrical, vertical body with a welded flat bottom and top flange with FKM seal
  • Cover with ring bolts and external guides for easy installation and protection of the sealing surface
  • Surface: inside and outside glass bead blasted
  • Chamber with foot-plates
  • Chamber ports available (accessories)
  • Delivery time: On request
€2,580.00
Tightness < 1 · 10-9 Pa m³/s
Pressure range 1 · 10-7 hPa to ambient pressure
Material Chamber body and cover made from stainless steel 304 (1.4301)
Nominal diameter DN 320
Temperature range -15 – 150 °C

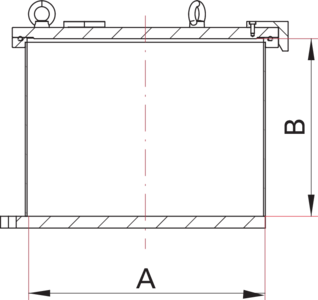

Dimension Image
mm
A 318
B 250
