Modular chamber, bell
- Modular design for maximum flexibility at any time
- Cylindrical, vertical body welded with dished end and ISO-K base flange
- Eye bolt
- Surface: inside and outside glass bead blasted
- Chamber ports available (accessories)
-
820KMG400-400
- Modular design for maximum flexibility at any time
- Cylindrical, vertical body welded with dished end and ISO-K base flange
- Eye bolt
- Surface: inside and outside glass bead blasted
- Chamber ports available (accessories)
- Delivery time: On request
Global-No. 2000038864
| Connection flange | DN 400 ISO-K |
|---|---|
| Tightness | < 1 · 10-9 Pa m³/s |
| Pressure range | 1E-7 hPa – 5E2 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Temperature range | 15 – 150 °C |

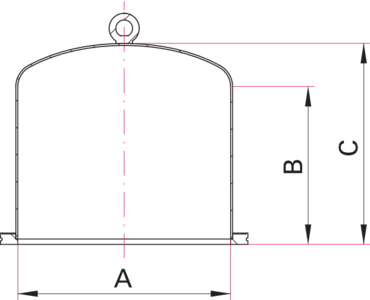

| mm | |
|---|---|
| A | 400 |
| B | 320 |
| C | 400 |
