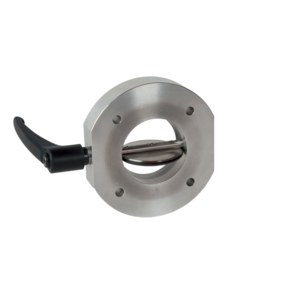

Butterfly valve, manually actuated
- Swivel valve plate with FKM seal
- Valve position indicated by handle
- Nearly free clearance in open position
- In the open position, the valve disc protrudes app. 19 mm from the valve on both sides
- Double valve head seal made from FKM
- Service life: 3000 operating cycles
-
520VSM063
- Swivel valve plate with FKM seal
- Valve position indicated by handle
- Nearly free clearance in open position
- In the open position, the valve disc protrudes app. 19 mm from the valve on both sides
- Double valve head seal made from FKM
- Service life: 3000 operating cycles
- Delivery time: 3 weeks
Global-No. 2000040223
| Connection flange | DN 63 ISO-F |
|---|---|
| Actuator | Manual |
| Tightness | 1 · 10-10 Pa m³/s |
| Seal | FKM |
| Pressure range | 1E-8 hPa – to ambient pressure |
| Housing | Stainless steel |
| Temperature range | 15 – 130 °C |
| Type | Butterfly valve |

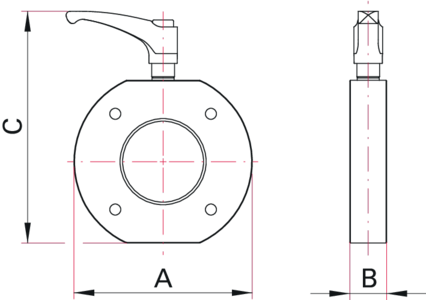

| mm | |
|---|---|
| A | 145 |
| B | 30 |
| C | 190 |
