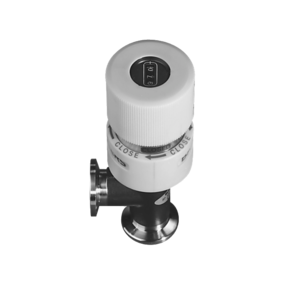

EVN 116, Gas dosing valve
- Closable without changing the gas flow setting
- Optimum characteristic
- Digital position display
- Excellent reproducibility
- Extremely small dead volume
- Very large control range
- Order number: PF I32 031
- Closable without changing the gas flow setting
- Optimum characteristic
- Digital position display
- Excellent reproducibility
- Extremely small dead volume
- Very large control range
- Delivery time: 1-3 days
| Connection flange | DN 16 ISO-KF |
|---|---|
| Actuator |
|
| Bakeout temperature at the flange | ≤ 150 °C |
| Bakeout temperature max. | ≤ 150 °C |
| Operating temperature | ≤ 80 °C |
| Tightness | 1 · 10-10 Pa m³/s |
| Seal |
|
| Differential pressure | 2500 hPa |
| Dosing sleeve | Fluoroplastomer |
| Max. controllable gas flow | 1 · 103 hPa·l/s |
| Min. controllable gas flow | 5 · 10-6 hPa·l/s |
| Housing |
|
| Weight | 0.4 kg |
| Scope of delivery |
|
| Dead volume | 0.032 cm³ |
| Type | Gas control valve |
