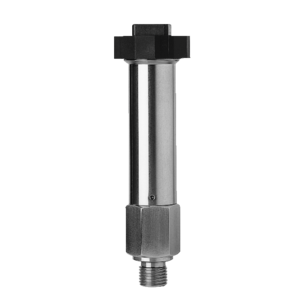

APR 266, G ¼"
  • Order number: P 5215 132 TF
  • Measurement range from 1 – 11000 hPa
  • Corrosion resistant
  • The maximum pressure applies to inert gases and temperatures below 55 °C
  • Delivery time: On request
€1,390.00
Output signal: Measuring range 1 – 9.8 V
Output signal: Minimum load 10 kΩ
Bakeout temperature max. ≤ 80 °C
Operating temperature 10 – 80 °C
Pressure max. 15000 hPa
Input voltage(s) 13 – 30 V DC
Stability of sensitivity (year) ≤ 0.2 %
Full scale 10000 hPa
Weight 0.12 kg
Power consumption max. 0.2 W
Linearity and hysteresis (full scale) ≤ 0.5 %
Materials in contact with media
  • Stainless steel
  • FKM
Measuring range 1E0 – 1.1E4 hPa
Accuracy of measurement in range 1 2 % (1E0 hPa – 1.1E4 hPa)
Accuracy of measurement in range 2 2 % (full scale)
Measurement cable length 50 m
Measuring method
  • Piezo
Nominal diameter G ¼"
Zero point stability (full scale | year) 0.5 %
Protection degree
  • IP65
Temperature: Storage -40 – 80 °C
Thermal sensitivity drift 0.5 %
Thermal zero point drift (full scale) ≤ 0.5 %
Volume 0.5 cm³

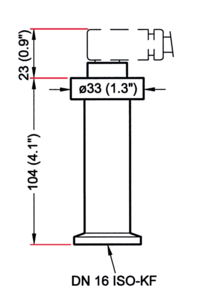

Dimension Image
