CMR 363, 10 hPa F.S.
  • Order number: PT R24 620
  • Measurement range from 1 · 10<sup>-3</sup> – 11 hPa
  • Excellent zero stability
  • Sensor in ceramic technology
  • No memory effects
  • Materials employed have identical temperature coefficients
  • Precise temperature compensation
  • Calibration test report included in delivery
  • Delivery time: On request
€1,540.00
Resolution 0.003 % F.S.
Output signal: Measuring range 1 – 9.8 V
Output signal: Minimum load 10 kΩ
Bakeout temperature at the flange 110 °C
Pressure max. 2000 hPa
Full scale 10 hPa
Precision: % of measurement 0.2 %
Weight 310 g
Materials in contact with media Ceramics (Al2O3 = 99.5 %)
Diaphragm and measuring chamber Ceramics (Al2O3 = 99.5 %)
Measuring range 1E-3 – 1.1E1 hPa
Measurement cable length 120 m
Nominal diameter Tube OD ½"
Response time 30 ms
Pipe and flange Stainless steel
Protection degree IP30
Temperature: Storage -40 – 65 °C
Temperature effect: on range 0.01% of measured value/ °C
Temperature effect: on zero point 0,005 % F.S./°C
Ambient temperature 5 – 50 °C
Supply: Voltage V DC 14 – 30 V DC
Supply: consumption max. ≤ 1 W
Volume ≤ 3.6 cm³

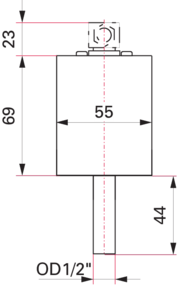

Dimension Image
