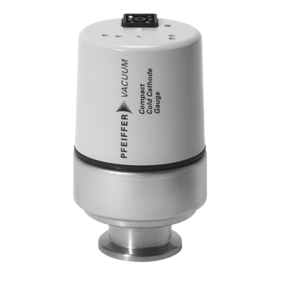

IKR 251, FPM sealed
- Flange size DN 40 ISO-KF
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Cold cathode (inverted magnetron)
- Rugged and dependable
- Insensitive to air ingress
- Corrosion-resistant
- Order number: PT R25 501
- Flange size DN 40 ISO-KF
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Cold cathode (inverted magnetron)
- Rugged and dependable
- Insensitive to air ingress
- Corrosion-resistant
- Delivery time: On request
| Anode |
|
|---|---|
| Output signal: Measuring range | 1.8 – 8.5 V |
| Output signal: Minimum load | 10 kΩ |
| Bakeout temperature | Electronics removed 150 °C |
| Seal |
|
| Pressure max. | 10000 hPa |
| Feedthrough | Al2O3 |
| Attribute | Interior FPM sealed |
| Flange, material | Stainless steel |
| Precision: 1 · 10<sup>-8</sup> – 1 · 10<sup>-3</sup> hPa | ± 30 % |
| Weight | 700 g |
| Measuring range | 2E-9 – 1E-2 hPa |
| Measurement cable length | 500 m |
| Nominal diameter | DN 40 ISO-KF |
| Temperature: Storage | -40 – 65 °C |
| Ambient temperature | 5 – 55 °C |
| Supply: Voltage V DC | 15 – 30 V DC |
| Supply: consumption max. | 2 W |
| Volume | 20 cm³ |
| Repeatability: 1 · 10<sup>-8</sup> – 1 · 10<sup>-3</sup> hPa | ± 5 % |
