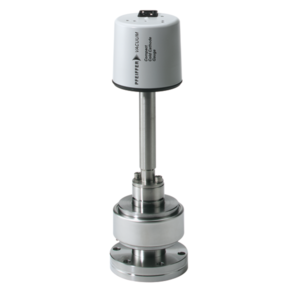

IKR 270, metal-sealed, long housing
- Flange size DN 40 CF-F
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Cold cathode (inverted magnetron)
- Rugged and dependable
- Insensitive to air ingress
- Corrosion resistant
- Extra-long housing in bake-out area
- Max. operating temperature: 250 °C
-
PT R21 261
- Flange size DN 40 CF-F
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Cold cathode (inverted magnetron)
- Rugged and dependable
- Insensitive to air ingress
- Corrosion resistant
- Extra-long housing in bake-out area
- Max. operating temperature: 250 °C
- Delivery time: 3 weeks
Global-No. 2000006935
| Anode |
|
|---|---|
| Connection flange | DN 40 CF-F |
| Output signal: Measuring range | 1.96 – 8.6 V |
| Output signal: Minimum load | 10 kΩ |
| Bakeout temperature max. (In operation) | ≤ 250 °C |
| Seal |
|
| Pressure max. | 1 · 104 hPa |
| Feedthrough |
|
| Attribute | Metal sealed |
| Input voltage(s) | 15 – 30 V DC |
| Flange, material | Stainless steel |
| Weight | 1.1 kg |
| Power consumption max. | 2 W |
| Measuring range | 5E-11 – 1E-2 hPa |
| Accuracy of measurement | 30 % (1E-9 hPa – 1E-3 hPa) |
| Measurement cable length min. | 500 m |
| Measuring method |
|
| Ambient temperature | 5 – 55 °C |
| Volume | 20 cm³ |
| Repeatability | 5 % (1E-9 hPa – 1E-3 hPa) |
