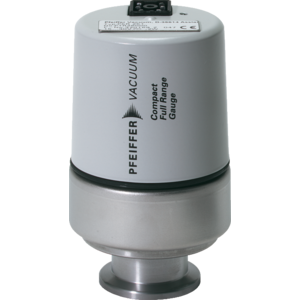

PKR 251, FPM gedichtet
  • Order number: PT R26 000
  • Flange size: DN 25 ISO-KF
  • Maximum pressure applies to inert gases and temperatures of less than 55 °C
  • Corrosion-resistant
  • Delivery time: 1-3 days
€1,170.00
Anode
  • Mo
Output signal: Measuring range1.8 – 8.6 V
Output signal: Minimum load10 kΩ
Bakeout temperatureElectronics removed 150 °C
Seal
  • FKM
Pressure max.10000 hPa
FeedthroughAl2O3, Glass
AttributeInterior FPM sealed
Flange, materialStainless steel
Precision: 1 · 10-8 – 1 · 100 hPa± 30 %
Weight700 g
FilamentTungsten
Measuring range5E-9 – 1E3 hPa
Measurement cable length300 m
Nominal diameterDN 25 ISO-KF
Temperature: Storage-40 – 65 °C
Ambient temperature5 – 55 °C
Supply: Voltage V DC15 – 30 V DC
Supply: consumption max.2 W
Volume20 cm³
Repeatability: 1 · 10-8 – 100 hPa± 5 %
