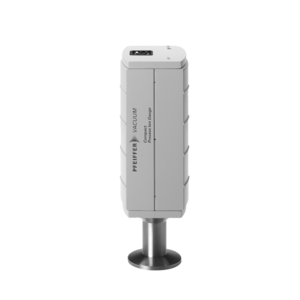

IMR 265, DN 16 CF-F
- Flange size DN 16 CF-F
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Two gauge heads (Pirani and hot cathode) in a single case
- High measurement accuracy
- Automatic cathode protection
- Corrosion resistant
- Order number: PT R26 502
- Flange size DN 16 CF-F
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Two gauge heads (Pirani and hot cathode) in a single case
- High measurement accuracy
- Automatic cathode protection
- Corrosion resistant
- Delivery time: 5 weeks
| Connection flange | DN 16 CF-F |
|---|---|
| Output signal: Measuring range hot cathode | 1.5 – 7.5 V |
| Output signal: Measuring range Pirani | 8.5 – 9.75 V |
| Output signal: Minimum load | 10 kΩ |
| Bakeout temperature max.(electronics removed) | 150 °C |
| Pressure max. | 5000 hPa |
| Input voltage(s) | 20 – 30 V DC |
| Flange, material | Stainless steel |
| Weight | 0.31 kg |
| Filament | Iridium coated with Y2O3 |
| Filament holder |
|
| Insulator | Glass |
| Power consumption max. | 16 W |
| Materials in contact with media |
|
| Measuring range | 2E-6 – 1E3 hPa |
| Accuracy of measurement in range 1 | 15 % (1E-5 hPa – 1E0 hPa) |
| Measurement cable length | 100 m |
| Measuring method |
|
| Pirani measurement element |
|
| Temperature: Storage | -20 – 70 °C |
| Ambient temperature | 0 – 50 °C |
| Volume | 20 cm³ |
| Repeatability in range 1 | 2 % (1E-5 hPa – 1E-1 hPa) |
| Repeatability in range 2 | 30 % (1E-1 hPa – 100 hPa) |
