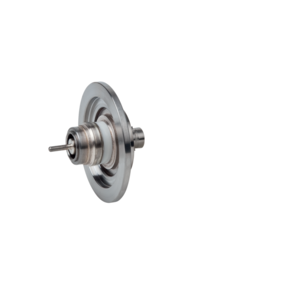

Coaxial feedthrough, flanged, SHV-5, floating shield
  • Order number: 120XSF016-1
  • A floating shield is when the potential of the shield is separated from the flange respectively the weld lip
  • Flange material: stainless steel
  • Including atmosphere sided plug (-65 to 165 °C)
  • The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum &lt; 1 · 10<sup>-4</sup> hPa
  • Delivery time: 5 weeks
€505.00
Screening Floating shield
Heat up and cool down rate max. 25 K/min
Tightness 1 · 10-11 Pa m³/s
Pressure range 1 · 10-8 hPa to ambient pressure
Material Flange: Stainless steel
Nominal diameter DN 16 ISO-KF
Pins 1
Voltage 5 kV DC
Current 5 A per pin
Temperature range (vacuum side) -100 – 300 °C

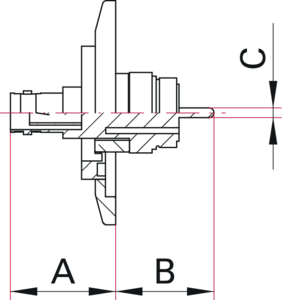

Dimension Image
mm
A 51
B 36
C 2.4
