Electrical feedthrough, flanged, 5 kV, 50 A
  • Order number: 120XST040-5-30-1
  • Flange material: Stainless steel
  • Conductor material: copper
  • Conductor material stainless steel, molybdenum, nickel on request
  • The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum &lt; 1 · 10<sup>-4</sup> hPa
  • Delivery time: 1-3 days
€188.00
Connection flange DN 40 ISO-KF
Heat up and cool down rate ≤ 20 K/min
Tightness 1 · 10-11 Pa m³/s
Pressure range 1E-8 hPa – to ambient pressure
Feedthrough voltage 5 kV DC
Materials in contact with media
  • Flange: Stainless steel, Conductor: Copper
Pins 1
Current 50 A
Temperature range (vacuum side) -100 – 300 °C

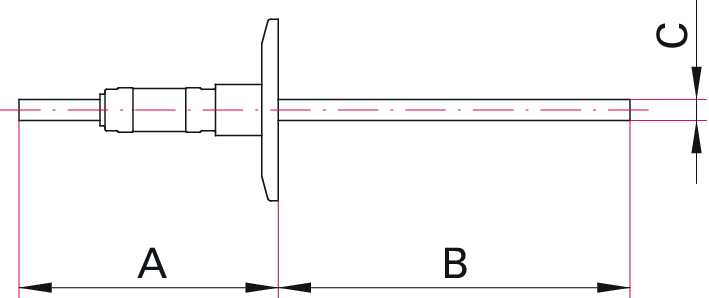

Dimension Image
mm
A 50
B 135
C 2.4
