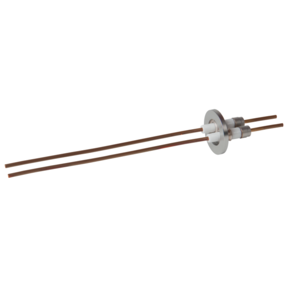

Electrical feedthrough, flanged, 5 kV, 50 A

Flange material: Stainless steel
Conductor material: copper
Conductor material stainless steel, molybdenum, nickel on request
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10^-4 hPa

Order number: 120XST040-5-30-4
Flange material: Stainless steel
Conductor material: copper
Conductor material stainless steel, molybdenum, nickel on request
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
Delivery time: 5 weeks

Order number	Delivery time	Your price	Amount
120XST040-5-30-4	5 weeks	€435.00

Connection flange	DN 40 ISO-KF
Heat up and cool down rate	≤ 20 K/min
Tightness	1 · 10^-11 Pa m³/s
Pressure range	1E-8 hPa – to ambient pressure
Feedthrough voltage	5 kV DC
Materials in contact with media	Flange: Stainless steel, Conductor: Copper
Pins	4
Current	50 A
Temperature range (vacuum side)	-100 – 300 °C
