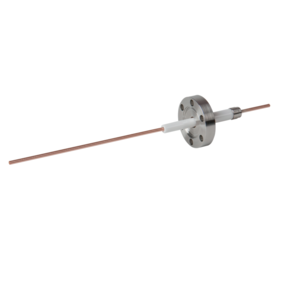

Electrical feedthrough, flanged, 14 kV, 50 A
  • Order number: 420XST016-10-30-1
  • Flange material: Stainless steel
  • Conductor material: copper
  • Conductor material stainless steel, molybdenum, nickel on request
  • The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum &lt; 1 · 10<sup>-4</sup> hPa
  • Delivery time: 5 weeks
€255.00
Connection flange DN 16 CF
Heat up and cool down rate ≤ 20 K/min
Tightness 1 · 10-11 Pa m³/s
Pressure range 1E-11 hPa – to ambient pressure
Feedthrough voltage 14 kV DC
Materials in contact with media
  • Flange: Stainless steel, Conductor: Copper
Pins 1
Current 50 A
Temperature range (vacuum side) -100 – 300 °C
Dimension Image
mm
A 62
B 122
C 2.4
