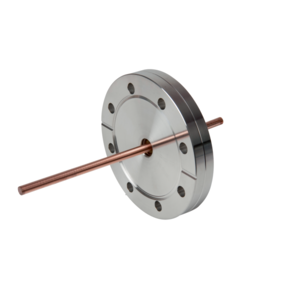

Electrical feedthrough, flanged, 12 kV, 180 A
- Flange material: Stainless steel
- Conductor material: copper
- Conductor material stainless steel, Ni on request
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
-
420XST040-12-150-2
- Flange material: Stainless steel
- Conductor material: copper
- Conductor material stainless steel, Ni on request
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
- Delivery time: 5 weeks
Global-No. 2000040538
| Connection flange | DN 40 CF |
|---|---|
| Heat up and cool down rate | ≤ 20 K/min |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1E-11 hPa – to ambient pressure |
| Feedthrough voltage | 12 kV DC |
| Materials in contact with media | Flange: Stainless steel, Conductor: Copper |
| Pins | 2 |
| Current | 180 A |
| Temperature range (vacuum side) | -100 – 300 °C |

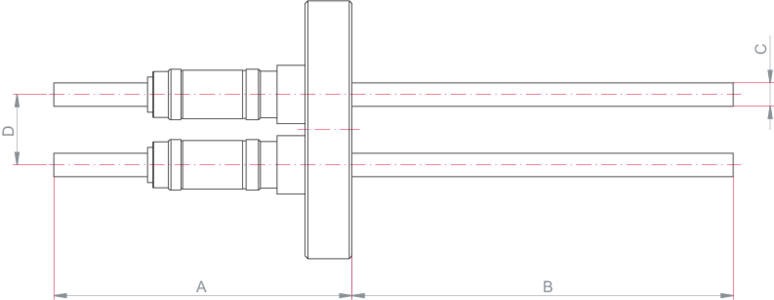

| mm | |
|---|---|
| A | 88 |
| B | 97 |
| C | 6.35 |
| D | 19.8 |
