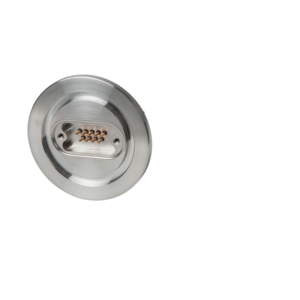

D-Sub feedthrough, flanged
- Type MIL-DTL-24308
- The current is per pin
- Flange material: Stainless steel
- Pin material: Nickel-Iron alloy (gold-plated)
- Insulator: Ceramic
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
-
120XSD040-9
- Type MIL-DTL-24308
- The current is per pin
- Flange material: Stainless steel
- Pin material: Nickel-Iron alloy (gold-plated)
- Insulator: Ceramic
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
- Delivery time: 1-3 days
Global-No. 2000048186
| Connection flange | DN 40 ISO-KF |
|---|---|
| Heat up and cool down rate | ≤ 25 K/min |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1 · 10-8 hPa – ambient pressure |
| Feedthrough voltage | 500 V DC |
| Materials in contact with media |
Flange: Stainless steel Pins: Nickel-Iron alloy, gold plated Insulator: Ceramic |
| Pins | 9 |
| Current | 5 A |
| Current per pin | 5 A |
| Current, total | 9 A |
| Temperature range (vacuum side) | -100 – 300 °C |
