Multi-Pin, flanged, 700V DC, 10 A
- Plug with soldering pins included, atmosphere side MIL-C-5015-compliant (-65 to 125 °C)
- Conductor material: alumel
- Flange material: Stainless steel
- Contact in vacuum through soldering or contact clamp XKL 015 A
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
-
120XSS016-4
- Plug with soldering pins included, atmosphere side MIL-C-5015-compliant (-65 to 125 °C)
- Conductor material: alumel
- Flange material: Stainless steel
- Contact in vacuum through soldering or contact clamp XKL 015 A
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
- Delivery time: 1-3 days
Global-No. 2000048206
| Connection flange | DN 16 ISO-KF |
|---|---|
| Heat up and cool down rate | ≤ 20 K/min |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1E-8 hPa – to ambient pressure |
| Feedthrough voltage | 700 V DC |
| Input voltage(s) | 700 V DC |
| Materials in contact with media | Flange: Stainless steel, Conductor: Alumel |
| Pins | 4 |
| Current per pin | 10 A |
| Current, total | 28 A |
| Temperature range (vacuum side) | -100 – 300 °C |

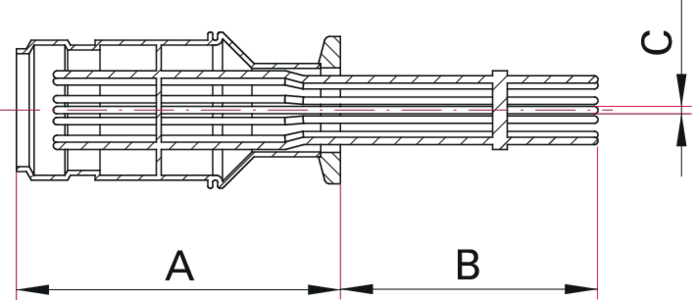

| mm | |
|---|---|
| A | 74 |
| B | 67 |
| C | 1.42 |
