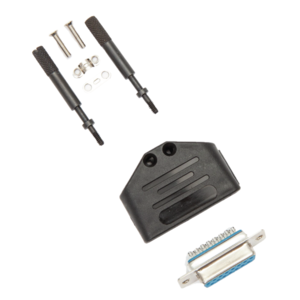

D-Sub plug, female, atmosphere side, with pins
- Type MIL-DTL-24308
- With pins
- The current is per pin
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
-
XSD-9-s-atm
- Type MIL-DTL-24308
- With pins
- The current is per pin
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
- Delivery time: 1-3 days
Global-No. 2000000850
| Heat up and cool down rate | ≤ 25 K/min |
|---|---|
| Feedthrough voltage | 500 V DC |
| Input voltage(s) | 500 V DC |
| Pins | 9 |
| Current per pin | 5 A |
| Current, total | 9 A |
| Temperature range | -55 – 80 °C |
| Name | Category | Language | Filesize | |
|---|---|---|---|---|
| 3D Step XSD-9-s-atm.stp |
3D CAD | 380 kB |
