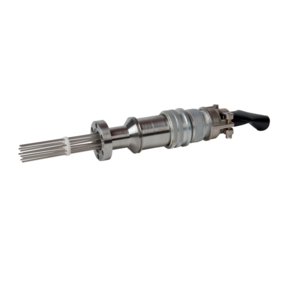

Thermocouple feedthrough, type K, flanged, with MS plug
- 5 Thermocouple pairs type K: Chromel (+) /Alumel (-)
- Thermocouple type E, J on request
- Incl. MS plug as per MIL-C-5015, atmosphere side (-65 to 125 °C)
-
420XTK016-5-S
- 5 Thermocouple pairs type K: Chromel (+) /Alumel (-)
- Thermocouple type E, J on request
- Incl. MS plug as per MIL-C-5015, atmosphere side (-65 to 125 °C)
- Delivery time: 1-3 days
Global-No. 2000040564
| Connection flange | DN 16 CF |
|---|---|
| Heat up and cool down rate | ≤ 20 K/min |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1E-11 hPa – to ambient pressure |
| Conductor pairs | 5 |
| Materials in contact with media |
|
| Temperature range (vacuum side) | -100 – 300 °C |

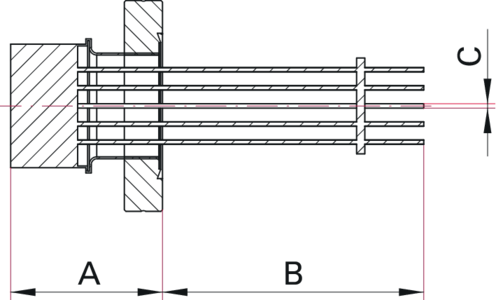

| mm | |
|---|---|
| A | 71 |
| B | 69 |
| C | 1.4 |
