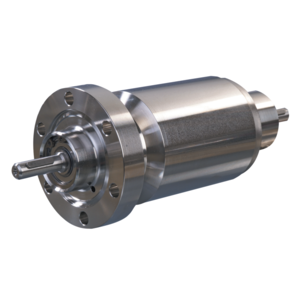

UD 140, Rotary feedthrough
- Hermetically sealed, suitable for UHV
- Bellows-sealed
- Stainless steel ball bearing with dry lubrication suitable for UHV
- Dynamic torque of only up to 0.2 Nm at operating temperature of 300 °C
-
PF 621 010 -T
- Hermetically sealed, suitable for UHV
- Bellows-sealed
- Stainless steel ball bearing with dry lubrication suitable for UHV
- Dynamic torque of only up to 0.2 Nm at operating temperature of 300 °C
- Delivery time: 3 weeks
Global-No. 2000026489
| Connection flange | DN 40 CF-F |
|---|---|
| Actuator | Rotating shaft |
| Bakeout temperature max. | ≤ 300 °C |
| Mode of operation | Shaft connections on both sides |
| Operating temperature | ≤ 300 °C |
| Tightness | < 1 · 10-11 Pa m³/s |
| Seal | Stainless steel bellows |
| Rotation speed | ≤ 1000 min-1 |
| Pressure range | 1E-9 hPa – 5E2 hPa over pressure |
| Feedthrough | Bellows |
| Mounting orientation | Arbitrary |
| Weight | 1.5 kg |
| Materials in contact with media | Stainless steel |
| Service life | 2000000 cycles |
| Service life (in revolutions) | 2000000 |
| Transferable torque dynamic | 4 Nm |
| Transferable torque static | 3 Nm |
| Shaft connection | ø 8 mm |
| Shaft load, axial | 20 N |
| Shaft load, radial | 60 N |
