Elastomer-sealed rotary/linear feedthrough
- Direct power transmission using elastomer-sealed shaft
- Shaft made from hardened stainless steel, diameter 12 mm
- Freely rotatable and slidable
- Adjustable stroke limiting stops
-
120MDD040-0750
- Direct power transmission using elastomer-sealed shaft
- Shaft made from hardened stainless steel, diameter 12 mm
- Freely rotatable and slidable
- Adjustable stroke limiting stops
- Delivery time: 1-3 days
Global-No. 2000047874
| Connection flange | DN 40 ISO-KF |
|---|---|
| Bakeout temperature max. | ≤ 200 °C |
| Operating temperature | -15 – 150 °C |
| Pressure range | 1E-8 hPa – to ambient pressure |
| Stroke | 750 mm |
| Lubricant | Perfluorpolyether grease |
| Transferable torque dynamic | 20 Nm |
| Shaft connection | With threaded hole, vented: M6 x 12 |
| Shaft load, axial | 100 N |

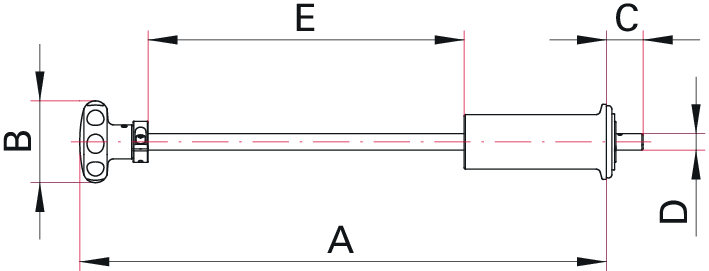

| mm | |
|---|---|
| A | 904 |
| B | 60 |
| C | 27 |
| D | 12 |
| E | 750 |
