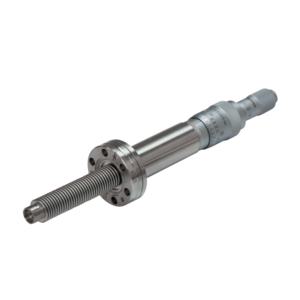

Bellows-sealed precision linear feedthrough, manual, superfine
  • Order number: 420MZF016-010-s
  • Hermetically sealed, suitable for UHV
  • Bellows-sealed
  • Delivery time: 1-3 days
€2,600.00
Actuator
  • Micrometer screw
Resolution 0.5 µm
Bakeout temperature: feedthrough max. 300 °C
Bakeout temperature: micrometer screw/piston max. 100 °C
Mode of operation Micrometer screw
Operating temperature ≤ 50 °C
Tightness 1 · 10-11 Pa m³/s
Pressure range 1 · 10-9 hPa to 500 hPa over pressure
Mounting orientation Arbitrary
Precision 3 µm
Stroke 10 mm
Material Stainless steel
Nominal diameter DN 16 CF
Service life 10000 cycles

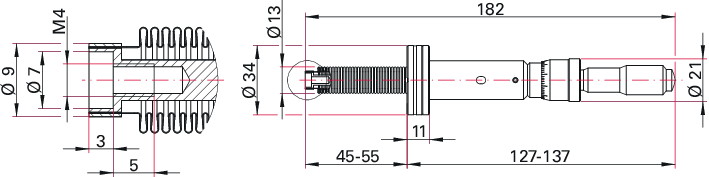

Dimension Image
