Port aligner for angular and linear adjustment, stainless steel
- Ball joint for easy angular adjustment
- Adjustment angle: 3 °
- Maximum angle and stroke simultaneously usable
- Flanges with through holes
- Order number: 420MPA040
- Ball joint for easy angular adjustment
- Adjustment angle: 3 °
- Maximum angle and stroke simultaneously usable
- Flanges with through holes
- Delivery time: 1-3 days
| Bakeout temperature | ≤ 250 °C |
|---|---|
| Axial stroke | ± 5 mm |
| Operating temperature | -15 – 80 °C |
| Tightness | < 1 · 10-11 Pa m³/s |
| Pressure range | 1 · 10-10 hPa to 500 hPa over pressure |
| Mounting orientation | Arbitrary |
| Inner diameter | DN 40: 38 mm; DN 63: 65 mm | DN 100: 102 mm |
| Material | Stainless steel (bellows 316L, flange and tube 304L, holders 304) |
| Nominal diameter | DN 40 CF |
| Service life | Min. 10.000 cycles at full deflection |

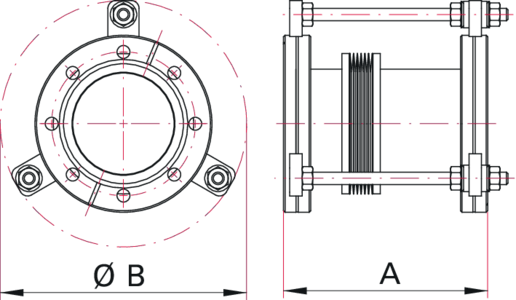

| A | 105 – 115 mm |
|---|---|
| B | 115 mm |
