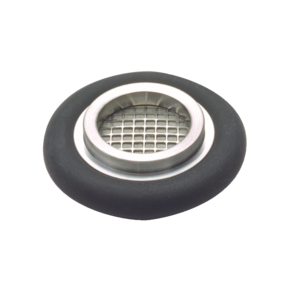

Centering ring with fine filter, 0,004 mm pore size
- With fine filter made of stainless steel 316L/1.4404
- Mesh size (average pore size): approx. 0.004 mm
- With FKM-o-ring
- Order number: PT 120 036 -T
- With fine filter made of stainless steel 316L/1.4404
- Mesh size (average pore size): approx. 0.004 mm
- With FKM-o-ring
- Delivery time: 1-3 days
| Connection flange | DN 25 ISO-KF |
|---|---|
| Mesh size | 0.004 mm |
| Material | Filter stainless steel 1.4404/316L, Centering Ring Stainless Steel 1.4305/303, Snab Ring Stainless Steel 1.4301/304 |
| O-ring material | FKM |
| Temperature range | -15 – 150 °C |
| Usage | Gauge with DN 25 ISO-KF |

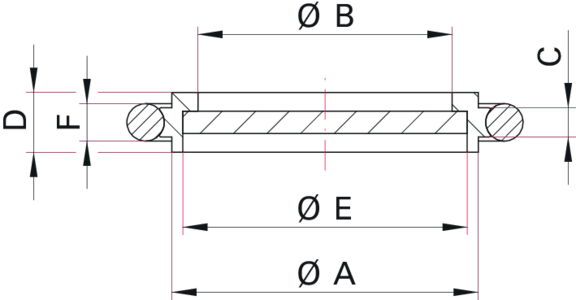

| A | 26 mm |
|---|---|
| B | 22 mm |
| C | 3.9 mm |
| D | 8 mm |
| E | 24 mm |
| F | 5 mm |
