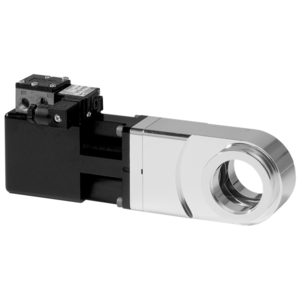

SVV 040 HM, UHV Gate valve
  • Order number: PF D58 100
  • High conductance due to free clearance
  • Vulcanized valve disk seal
  • With visible indication of open and closed positions
  • Service life: 50000 operating cycles
  • Delivery time: On request
€2,385.00
Actuator
  • Electro-pneumatic
Bakeout temperature: actuator 50 °C
Bakeout temperature: housing 100 °C
Tightness 1 · 10-10 Pa m³/s
Seal: Housing FKM
Seal: Valve seat FKM
Differential pressure in opening direction 1000 hPa
Differential pressure in closing direction 1000 hPa
Pressure max. (absolute) 1000 hPa
Pressure min. 1 · 10-7 hPa
Compressed air (overpressure) 4 500 – 7 000 hPa
Compressed air volume 70 cm³
Feedthrough Shaft feedthrough
Housing Aluminum
Weight 1.2 kg
Position feedback: Load capacity at 50 V DC 0.5 A
Power consumption 24 V DC / 5.4 W
Conductance value with molecular flow 140 l/s
Nominal diameter DN 40 ISO-KF
Opens against differential pressure of 30 hPa
Closing/opening time 1.2 s/1.2 s
Service life 50000 cycles
Type HV gate valve
Valve plate Stainless steel
Supply 24 V, 50 Hz
