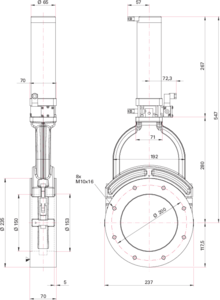

SVV 160 PA, HV gate valve
- High conductance due to free clearance
- With visual indication of open and closed positions
- Service life: up to 200000 operating cycles
-
Order number:
PF E38 501
- High conductance due to free clearance
- With visual indication of open and closed positions
- Service life: up to 200000 operating cycles
-
Delivery time:
On request
| Actuator |
|
|---|
| Bakeout temperature: actuator |
50 °C
|
|---|
| Bakeout temperature: housing |
120 °C
|
|---|
| Tightness |
1 · 10-10 Pa m³/s
|
|---|
| Seal: Housing |
FKM
|
|---|
| Seal: Valve seat |
FKM
|
|---|
| Differential pressure in opening direction |
1600 hPa
|
|---|
| Differential pressure in closing direction |
1600 hPa
|
|---|
| Pressure max. (absolute) |
1600 hPa
|
|---|
| Pressure min. |
1 · 10-7 hPa
|
|---|
| Compressed air (overpressure) |
4 000 – 7 000 hPa
|
|---|
| Compressed air volume |
500 cm³
|
|---|
| Feedthrough |
Shaft feedthrough
|
|---|
| Housing |
Aluminum
|
|---|
| Weight |
9 kg
|
|---|
| Position feedback: Load capacity at 250 V AC |
2 A
|
|---|
| Position feedback: Load capacity at 50 V DC |
1.2 A
|
|---|
| Power consumption |
24 V DC / 5.4 W
|
|---|
| Conductance value with molecular flow |
6000 l/s
|
|---|
| Nominal diameter |
DN 160 ISO-F
|
|---|
| Opens against differential pressure of |
30 hPa
|
|---|
| Closing/opening time |
2 s/2 s
|
|---|
| Service life |
100000 cycles
|
|---|
| Type |
HV gate valve
|
|---|
| Valve plate |
Stainless steel
|
|---|
| Supply |
230 V, 50 Hz
|
|---|
