SVV 250 PA, HV gate valve
  • Order number: PF E58 201
  • High conductance due to free clearance
  • With visual indication of open and closed positions
  • Service life: up to 200000 operating cycles
  • Delivery time: On request
€10,205.00
Actuator
  • Electro-pneumatic
Bakeout temperature: actuator 50 °C
Bakeout temperature: housing 120 °C
Tightness 1 · 10-10 Pa m³/s
Seal: Housing FKM
Seal: Valve seat FKM
Differential pressure in opening direction 1200 hPa
Differential pressure in closing direction 1200 hPa
Pressure max. (absolute) 1200 hPa
Pressure min. 1 · 10-7 hPa
Compressed air (overpressure) 4 000 – 7 000 hPa
Compressed air volume 1500 cm³
Feedthrough Shaft feedthrough
Housing Aluminum
Weight 25 kg
Position feedback: Load capacity at 250 V AC 2 A
Position feedback: Load capacity at 50 V DC 1.2 A
Power consumption 24 V DC / 5.4 W
Conductance value with molecular flow 22000 l/s
Nominal diameter DN 250 ISO-F
Opens against differential pressure of 30 hPa
Closing/opening time 5 s/5 s
Service life 100000 cycles
Type HV gate valve
Valve plate Stainless steel
Supply 24 V DC

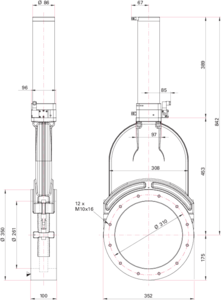

Dimension Image
