HV Pendulum valve, DN 320 ISO-F, electro-pneumatic, with PI (RS), with PV, 24 V DC
- Space-saving, compact design
- In-situ serviceability through removable body cover
- Wide selection of O-ring materials
- CE marked/fully REACH and RoHS compliant
- Position indicator (PI): Reed switch
-
IPV-A13342
- Space-saving, compact design
- In-situ serviceability through removable body cover
- Wide selection of O-ring materials
- CE marked/fully REACH and RoHS compliant
- Position indicator (PI): Reed switch
- Delivery time: On request
Global-No. 2000032500
| Connection flange | DN 320 ISO-F |
|---|---|
| Actuator |
|
| Number of screws | 12 pcs. |
| Bakeout temperature: actuator | 60 °C |
| Bakeout temperature: actuator, position indicator | 60 °C |
| Bakeout temperature: actuator, pilot valve | 60 °C |
| Bakeout temperature: housing | 150 °C |
| Bakeout temperature: valve open, under vacuum | 150 °C |
| Bakeout temperature: valve closed | 150 °C |
| Tightness | 1 · 10-9 mbar l/s |
| Seal: Housing | FKM |
| Seal: Valve seat | FKM |
| Differential pressure in opening direction | 1500 hPa |
| Differential pressure in closing direction | 1500 hPa |
| Pressure max. (absolute) | 1500 hPa |
| Pressure min. | 1 · 10-9 hPa |
| Compressed air (overpressure) | 4500 – 6000 hPa |
| Compressed air volume | 8266 cm³ |
| Feedthrough |
|
| Input voltage(s) | 24 V DC |
| Housing |
|
| Weight | 55 kg |
| Thread | M 12 |
| Thread depth | 18 mm |
| Power consumption | 0.5 W |
| Conductance value with molecular flow | 33000 l/s |
| Opens against differential pressure of | 29 hPa |
| Closing/opening time | 5 s/5 s |
| Service life | 200000 cycles |
| Position indicator |
|

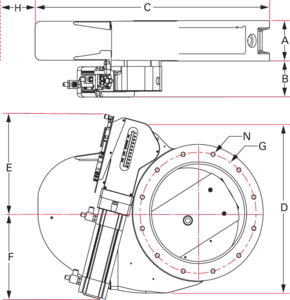

| Control valve | Included |
| Type | HV Pendulum Valve |
| Valve plate | Aluminum |
| A | 123 mm |
|---|---|
| B | 120 mm |
| C | 760 mm |
| D | 534 mm |
| E | 307 mm |
| F | 273 mm |
| G | 395 mm |
| H | 270 mm |
| N | 12 x M12x18 |
