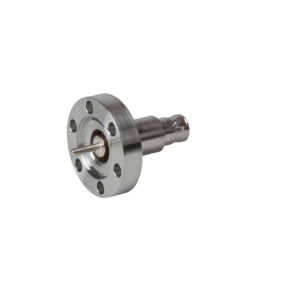

Coaxial feedthrough, flanged, MHV, floating shield
- A floating shield is when the potential of the shield is separated from the flange respectively the weld lip
- Flange material: Stainless steel
- Including atmosphere sided plug (-65 to 165 °C)
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
-
420XMF016-1
- A floating shield is when the potential of the shield is separated from the flange respectively the weld lip
- Flange material: Stainless steel
- Including atmosphere sided plug (-65 to 165 °C)
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
- Delivery time: 5 weeks
Global-No. 2000040485
| Screening | Floating shield |
|---|---|
| Connection flange | DN 16 CF |
| Heat up and cool down rate | ≤ 25 K/min |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1E-11 hPa – to ambient pressure |
| Feedthrough voltage | 5 kV DC |
| Materials in contact with media | Flange: Stainless steel |
| Pins | 1 |
| Current | 3 A |
| Temperature range (vacuum side) | -100 – 300 °C |

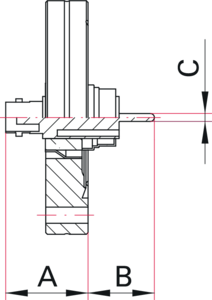

| mm | |
|---|---|
| A | 51 |
| B | 32 |
| C | 2.4 |
