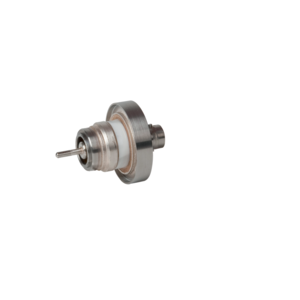

Coaxial feedthrough, welding adapter, BNC, 500 V DC, 3A

Weldable via weld lip (dimension C)
Including atmosphere sided plug (-65 to 165 °C)
A floating shield is when the potential of the shield is separated from the flange respectively the weld lip
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10^-4 hPa

Order number: XBF-Mini
Weldable via weld lip (dimension C)
Including atmosphere sided plug (-65 to 165 °C)
A floating shield is when the potential of the shield is separated from the flange respectively the weld lip
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
Delivery time: 5 weeks

Order number	Delivery time	Your price	Amount
XBF-Mini	5 weeks	€275.00

Screening	Floating shield
Heat up and cool down rate	≤ 20 K/min

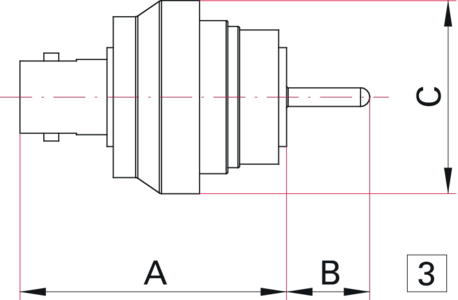

Remark	Detail drawing 3
Tightness	1 · 10^-11 Pa m³/s
Pressure range	1E-11 hPa – to ambient pressure
Feedthrough voltage	500 V DC
Input voltage(s)	500 V DC
Current	3 A
Temperature range (vacuum side)	-100 – 300 °C
