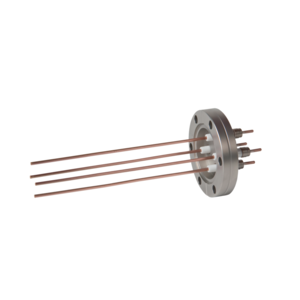

Electrical feedthrough, flanged, with silicone plug

Plug and silicone cable (length 2.4 m) included (-55 to 125 °C)
Flange material: Stainless steel
Conductor material: copper
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10^-4 hPa

Order number: 420XSP040-10-30-4
Plug and silicone cable (length 2.4 m) included (-55 to 125 °C)
Flange material: Stainless steel
Conductor material: copper
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
Delivery time: 5 weeks

Order number	Delivery time	Your price	Amount
420XSP040-10-30-4	5 weeks	€910.00

Connection flange	DN 40 CF
Heat up and cool down rate	≤ 25 K/min
Tightness	1 · 10^-11 Pa m³/s
Pressure range	1E-11 hPa – to ambient pressure
Feedthrough voltage	10 kV DC
Materials in contact with media	Flange: Stainless steel, Conductor: Copper
Pins	4
Temperature range (vacuum side)	-100 – 300 °C
