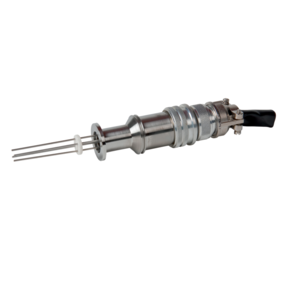

Thermocouple feedthrough, type K, flanged, with MS plug
  • Order number: 120XTK016-5-S
  • Thermocouple Type K: Chromel (+)/Alumel (-), (type E, J on request)
  • Including atmosphere sided MIL-C-5015-compliant MS plug (-65 to 125 °C)
  • Delivery time: 5 weeks
€785.00
Heat up and cool down rate ≤ 20 K/min
Tightness 1 · 10-11 Pa m³/s
Pressure range 1E-8 hPa – to ambient pressure
Conductor pairs 5
Materials in contact with media
  • Flange: Stainless steel
Nominal diameter DN 16 ISO-KF
Temperature range (vacuum side) -100 – 300 °C

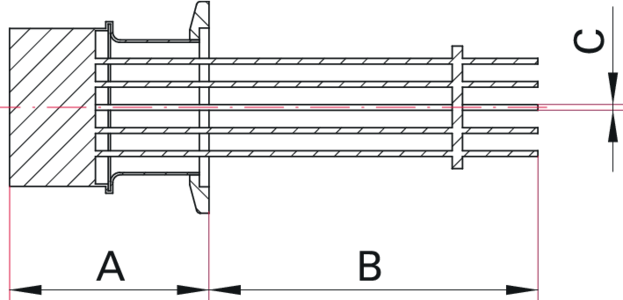

Dimension Image
mm
A 71
B 69
C 1.4
